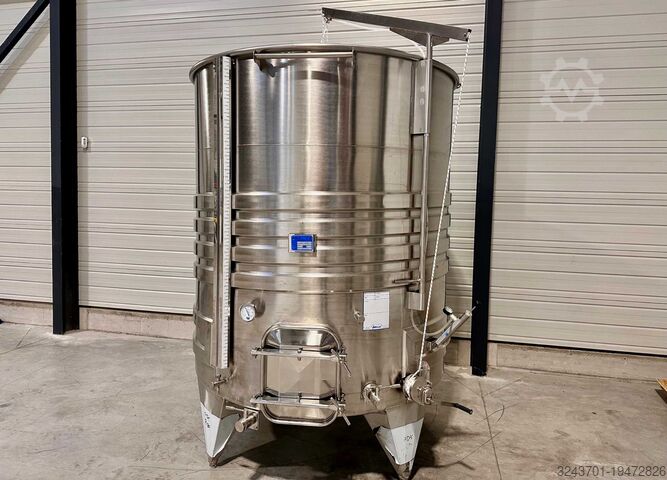

304 stainless steel tank - 4,893 L

ARSILAC

TECHNICAL SPECIFICATIONS
- Brand: ARSILAC
- Model: SPAIPSER5200
- Material: 304 stainless steel
- Total capacity: 4,893 litres
- Bottom: flat sloped, 4% slope
- Roof: floating roof
- Interior finish: bright annealed
- Exterior finish: brushed

ROOF
- 1 316L stainless steel floating roof and complete pneumatic system
(stainless steel cover, pump, air chamber, valve)

RING
- Vacuum lifting rings
- 1 lifting bracket
- 1 lifting winch
- 1 ladder support
- 1 rectangular door 420×530 mm at the bottom of the ring with external opening
- 1 partial drain with 100×100 square flange, 40 MÂCON stainless steel ball valve, stainless steel plug
- 1 tasting tap on DIN 15 connection
- 1 needle thermometer
- 1 complete stainless steel level gauge with tap and stainless steel ruler (polycarbonate tube)

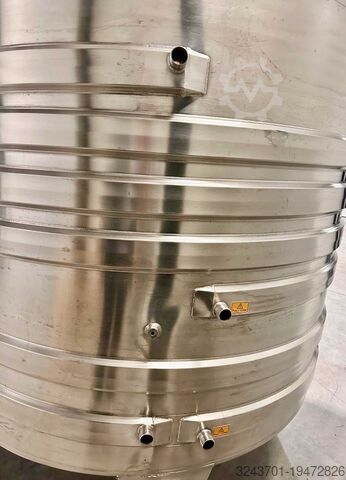

- 4 coil turns with 3.01 m² exchange surface on the shell
- 2 coil towers with 1.05 m² exchange surface around the door
- Maximum pressure on coil circuit: 1.5 bar
Lodpfx Ajwwkq Isbtoah
- 1 inlet and 1 outlet on the coil circuit, 1‘ 1/4’ male gas connection
- 1 connection with protective sleeve for control probe
- 1 identification plate

BOTTOM
- 1 total drain with 100×100 square flange, 40 MÂCON stainless steel ball valve and stainless steel plug
- 4 stainless steel feet, height 500 mm, adjustment screws and base plate

DIMENSIONS
- Diameter: 1800 mm
- Shell height: 2000 mm
- Total height: 3213 mm
- Weight: 425 kg
- Ring thickness: 15/10ᵉ mm
- Domed bottom thickness: 20/10ᵉ mm
