CO2 installation & cold room

BITZER CO2 installation & cold room

In good condition, CO2 installation & cold room built in 2021. Cold room temperature of +-4°C and an evaporating temperature of -8°C. The installation includes the following:

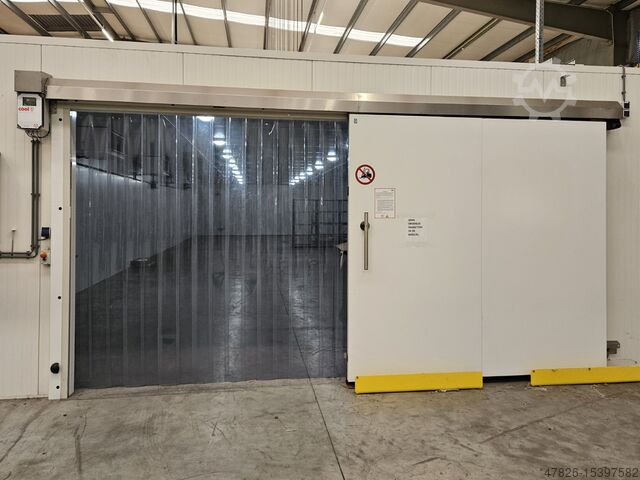

One cold room storage with a panel thickness of 100 mm and an isolation value of RC 5,21. Further, the cold room has an electrical slide door and 3 Bachara MGS 450/CO2 gas detectors. One for on the machine set and two for in the cold room. Cold room temperature is +-4°C.

Dimensions internal: 24.800x7.800x2.900 mm (LxWxH)
Ledpfx Aorz R Arsf Toru
Dimensions external: 25.000x8.000x3.100 mm (LxWxH)
Dimensions slide door: 2500x2500 mm (WxH)
Cold room surface: 194 m²
Cold room volume: 600 m³

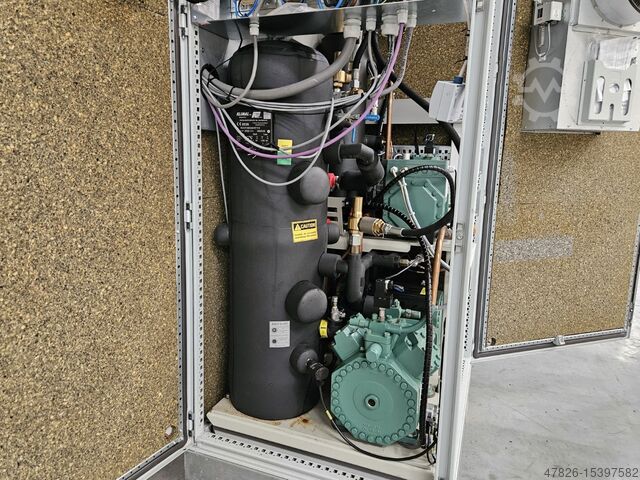

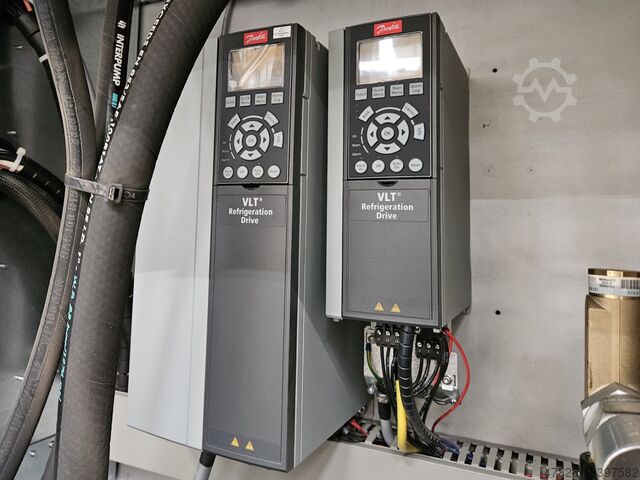

Advansor MiniBooster 2x1 unit complete with a Bitzer 2HSL-3K-40S & Bitzer 4KTE-10K-40S (x2) semi-hermetic reciprocating compressors, Klimal RCO 273.108.53.80+WT 17.19 liquid collector, 2 Danfoss VLT drives and a Danfoss MMI control display. Dimensions: 1000x800x2200 mm (LxWxH) & weight: 820 kg.

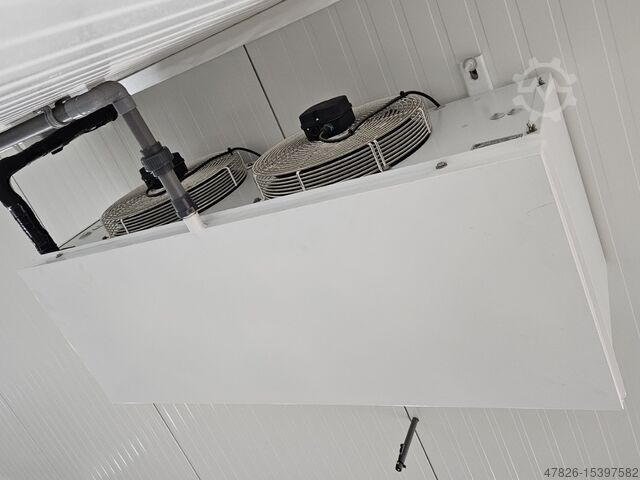

Delta FMT-7028 (x4) evaporators with a capacity of 6,3 kW. Each evaporator has 2 fans that have a diameter of 350 mm and an airflow of 3.000 m³/h. Dimensions: 1370x470x465 mm (LxWxH).

Eco KCE62M6V.4314 gas cooler with 2 EBM-Papst A3G630-AR85-90 fans - 50/60 Hz - 0,97 kW - 1140 RPM - diameter 630 mm. The gas cooler has a capacity of 50 kW. Weight: 250 kg.

Please feel free to contact us for more information and additional pictures!
