Roll-off tipper

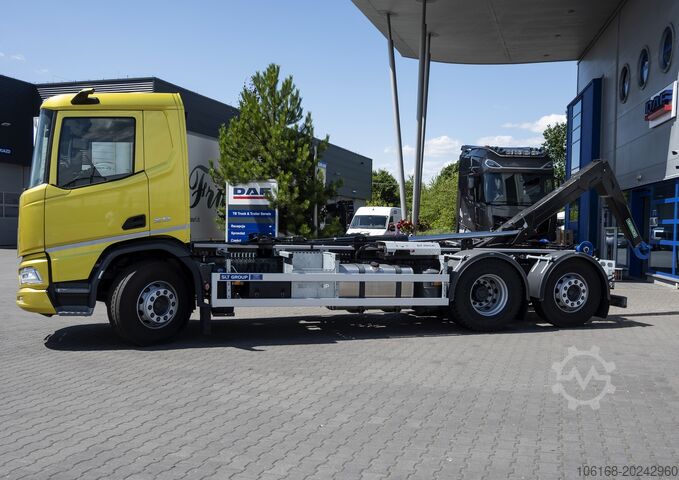

DAF XD 450 FAN 6X2 Abrollkipper

PLEASE NOTE: The vehicle is currently located with our partner.
Please confirm availability via email or phone.

I will send the vehicle specifications after initial contact.

HKS 20 Hooklift System with Body:
Rated lifting capacity: 20 t,
Maximum technical load capacity: 22 t,
Maximum container length: up to 7000 mm,
Hook height: H = 1570 mm, according to DIN 30722,
Device length (hook center to rear guide roller): 5900 mm,
Device weight: 2600 to 2800 kg ±5%,
Operating pressure: 24–28 MPa,
Main structure made of welded stainless steel,
Dedpjxl Euujfx Afwjcn
Oil tank,
Hydraulic pump,
Two main cylinders,
Main cylinders with adjustable length,
Telescopic (sliding) main arm,
Telescopic extension L = 1300 mm,
Wide rollers ensure stability. The container is welded.
The distributor cover is made of hot-dip galvanized steel.
The articulated arm extension is mounted on 9 replaceable sliding plates.
The hook frame is made of high-grade steel.

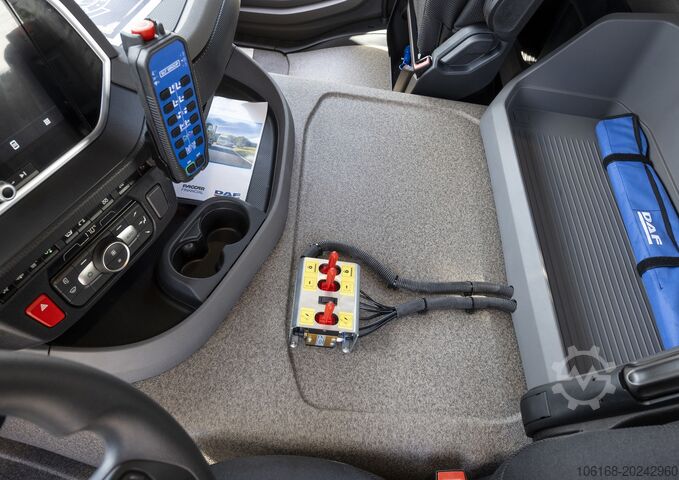

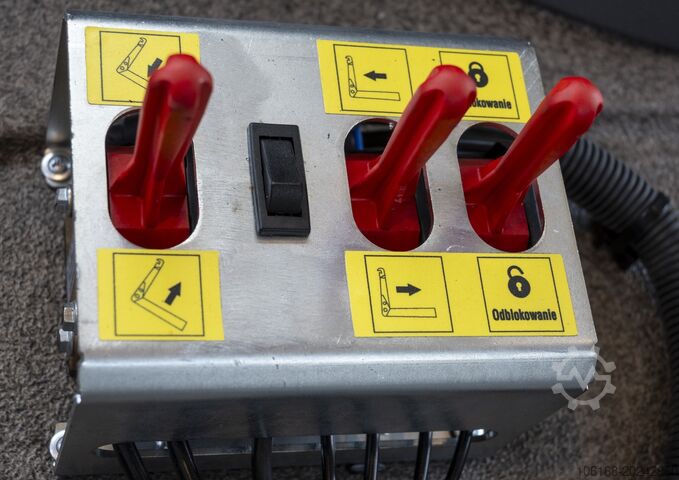

Pneumatic control from the cabin.
Hydraulic cylinder seals from a reputable manufacturer.
Distributors and hydraulic locks from a reputable manufacturer.
Hydraulic locking system with optical lock indicator in the driver’s cab.
The steel structure is shot-blasted, epoxy-primed, and finished with a polyurethane top coating in RAL colors.
The device coupling eye is made of wear-resistant HARDOX steel.
Contour markings according to PRD.
Rear license plate holder.
Rotating elements are mounted on bronze bushings.
Hydraulic hoses are galvanized and painted with primer and topcoat in the color of the device.
Fast movement system – Turbo.
All device components are welded (no cast parts).
Plastic toolbox
Galvanized mesh basket
Beacon lights on the radiator grille and rear overhang
Work lights on the rear overhang
Work lights on the driver’s cab
Side bicycle safety guards
Wheel arches with mud flaps
Rear underrun protection
Remote control for the body
12-month warranty
