5-axis vertical & horizontal

DEPO WERKZEUGMASCHINEN GMBH XPERT T 2400

Xpert T 2400
Machine configuration:
- 5-axis execution
- NC rotary table, Ø1,800 mm, 20 rpm

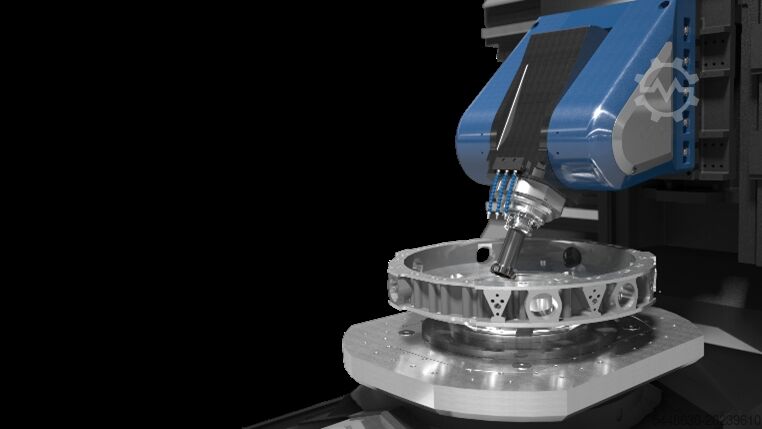

- NC swivel milling head T-series with B-axis
- CYTEC milling spindle
Option 1: 42/55 kW, 400/525 Nm, 8,000 rpm
Option 2: 115/138 kW, 700/824 Nm, 5,000 rpm
- Chain-type tool magazine, 60 to 180 positions, HSK-A100
- CNC control: HEIDENHAIN TNC i7 or Siemens

Technical data
Travel range X-axis = 2,400 mm
Travel range Y-axis = 2,400 mm
Dedpfsxlzi Ijx Afwecn
Travel range Z-axis = 1,250 mm
Rapid traverse in X, Y, and Z = 40 / 40 / 30 m/min

NC Rotary Table
- Faceplate, standard = Ø 1,800 mm
- Interference diameter = Ø 2,540 mm
- Table load – milling, max. = 6,000 kg
- Rotation range = continuous
- Max. speed = 20 rpm
- Rated torque = 8,144 Nm
- Clamping torque = 12,000 Nm

NC Swivel Milling Head T-SERIES
Drive for B-axis
- Swivel range = +135° / -55°
- Rated torque = 4,400 Nm
- Clamping torque = 6,200 Nm

Chain-type tool magazine with double gripper
- Tool positions = expandable from 60 to 180
- Tool holder = HSK-A100
- Position pitch = 110 mm
- Tool diameter at full capacity = Ø 125 mm
- Max. tool diameter = Ø 250 mm
- Max. tool length = 400 mm
- Max. tool weight = 25 kg
