Transfer Machine

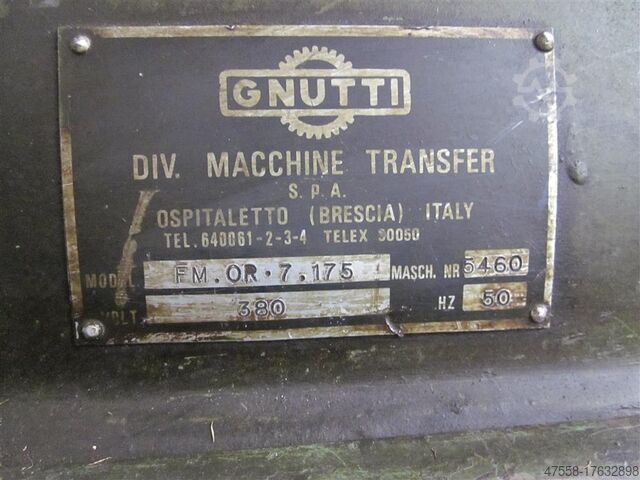

GNUTTI FM OR 7.175

Technical details:

spindle taper: SK40
spindle stroke: 175 mm
number of spindles: 8 Stück
number of stations: 5 Stück
cycle time: 15-20 sec
revolutions per minute: bohren/drill/taladrar 225...1037 U/min.
revolutions per minute: gewinde/threading/roscar 50...316 U/min.
feed: 0,2 m/min
total power requirement: 30 (40PS) kW
weight of the machine ca.: 9,0 t
space requirements of the machine approx.: 3,9x2,4x2,5 m
dimensions of machine: L:3,9xB:2,2xH:2,7 m
dimensions L x W x H: +Anlage/plant/planta 2,7x2,52x2,25 m

The machine will be on a General overhaul (pictures from original condition at the former Company)
The machine has been constructed for the metal cutting process of workpieces in one clamping session. Especially blanks made of brass with a diameter 90mm x approx 100mm length would be machined with this machine.

description:
- workpiece support with switch plate with clamping station type round table with horizontal axis with 5 workpiece stations
Lhjdeu Idycepfx Ad Esn

processing units:
- drill spindle and thread cutting units
- drill capacity up to 2 3/4" and 81,53mm in brass
- thread cutting up to 2 1/2" und metric thread

Machine is equipped with a feeding-and unloading unit for workpieces. ( feed capacity 3 -4 pieces/min and cycle time 15 - 20 sec.)
furthermore incl. coolant device
