Gottschild HBS 1600-75 polishing and grinding machine

Gottschild HBS 1600-750-100-1

Polishing machine Gottschild HBS 1600-750-100-1(2)

The Gottschild grinding and polishing machine offers a wide range of applications, from the production of high gloss furniture fronts, glass panels to Corian
• grinding and polishing.
• Easy change between grinding and polishing head
• with sinusoidal tool head oscillation, for an even better uniform high- gloss surface which satisfies even the highest demands.
• with automatic part detection (machine only designed for rectangular parts)

Technical data:
• Type: HBS 1600-750-100-1
Lrsdpfeu Afu Dox Af Tsu
• Year of manufacture 2013
• Electrical connection 400V, 50 Hz, 4,5 kW, 10 A
• Compressed air 6 bar connection adjusted to 5 bar
• Conveyor belt 1.600 mm x 940 mm
• part width: 90mm- 750mm (without tool brigde 850mm)
• part length: 150 mm - 2.800mm
• part heights 8-100 mm (extended working height)
• Frame size 1600 mm x 1200 mm
• Rack height approx. 960 mm ± 25 mm
• Frame material welded steel tube
• Support for superstructure aluminum profiles
• Belt cleaning manual every 8 hours
• Safety devices emergency stop.
• The machine has to be shielded by protective walls if the machine is delivered without housing.

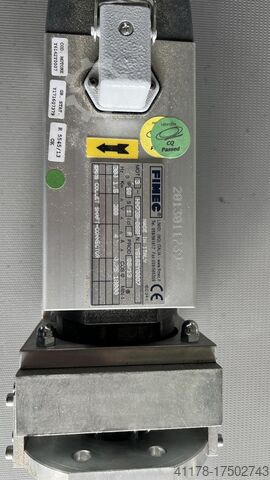

• Polishing motor 400V, 50 Hz, 0,75 kW with planetary gearbox
• Control Siemens/Vipa S7 PLC, parameters via KEB Touch Panel
• Frequency converter KEB
• Control elements control ON/OFF, RESET, START/STOP, program interruption, grinding head speed, oscillation speed and belt speed

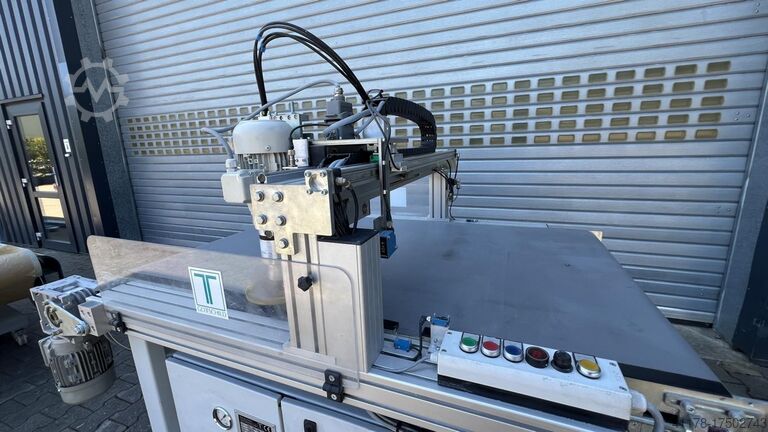

• Tool bridge: Tool bridge with polishing head, consisting of a linear profile system, driven by linear cylinder.
• Without polishing pad for the polishing head

Location: on stock

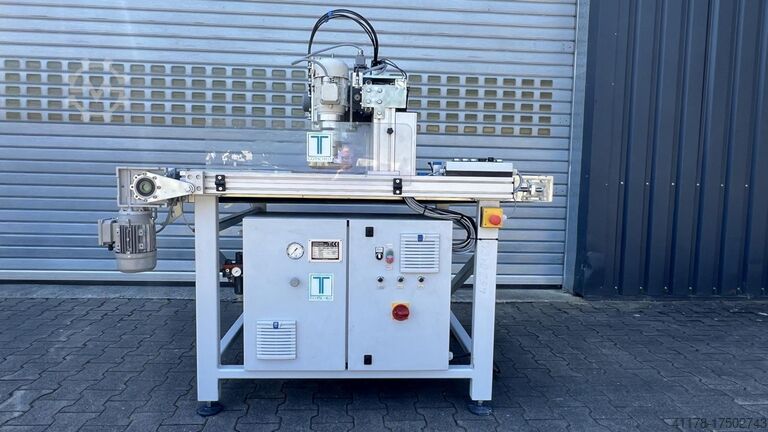

PICTURES of an identical machine built in the same year
