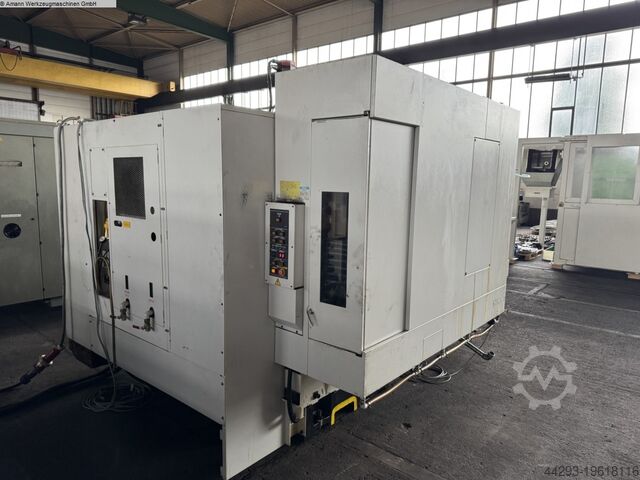

Machining Center - Horizontal

HITACHI SEIKI HS400

x-travel 600 mm
y-travel 580 mm
z-travel 580 mm
control SEICOS 16M
B-axis (table) 360 x 1° mm
feed X/Y/Z/-axis 1 - 50.000 mm/min
rapid traverse X/Y/Z 50,00 m/min
turning speed range - stepless 35 - 12.000 Nm
spindle drive 22,00 kW
max. torque on the spindle 236
tool taper BT40
toolpiece magazine: chain magazine 61 Stück
size of pallet 2x 400x400 mm
max. workpiece diameter 630 mm
workpiece height max. 680 mm
Csdpow A Amfefx Acushc
workpiece weight max. 400 kg
total power requirement 30,00 kW
weight of the machine ca. 12,00 t
dimensions of the machine ca. 4,00 x 3,50 x H3,00 m
With SEICOS S16M control unit, coolant system, chip conveyor,
electron. handwheel, dust exhauster.
