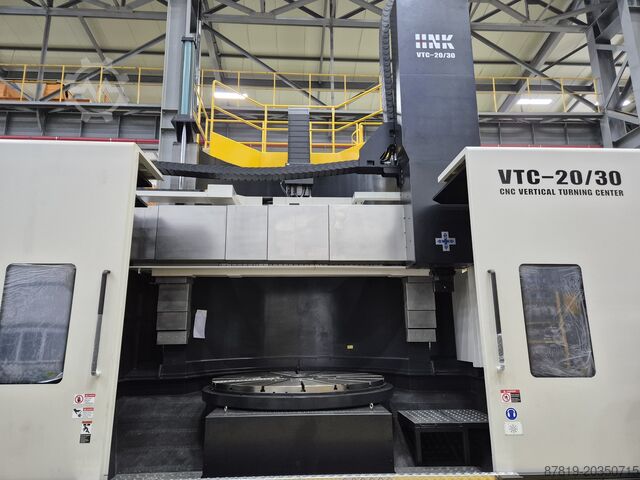

Vertical lathe

HNK VTC-20/30

CNC Vertical Turning Center
Model: VTC-20/30 with Fanuc 31i-B

Table diameter: Ø2,000 mm
Maximum swing diameter: Ø3,000 mm
Maximum turning height: 2,000 mm
Table speed: max. 200 rpm
Table load capacity: 12,000 kg
Table indexing: 0.001°
Z-Axis (vertical ram travel): 1,200 mm
Main spindle speed: max. 15 ~ 2,000 rpm
Ram size: 240 mm x 240 mm
Milling spindle taper: ISO 50
Tool shank size: 40 mm x 40 mm
Crossrail (vertical travel): 1,000 mm 250 x 4 stages (hydraulic)
Rapid traverse X-axis: 10,000 mm/min
Rapid traverse 7-axis: 10,000 mm/min
Cutting feed rate: 1 ~ 3,000 mm/min
Table drive motor: AC 45/55 kW (continuous / 30 min.)
Milling spindle drive power ISO 50: 18.5/22 kW (continuous / 30 min.)
Control: Fanuc 31i-B
Display unit: 15-inch TFT-LCD
Tape memory: 1 MB
Automatic tool changer: 12 positions (for 5 turning tools + 1 cover + 6 milling tools)
Standard tool holders: New 240 TCR-01 (2 pieces)
Splash guard: Table version (R-type standard)
External coolant system: 3 bar (80 liters/min.)
Chip conveyor: hinge-type
4-jaw independent manual chuck
Foundation anchor bolts / shims
Maintenance tools and toolbox
Hydraulic power unit
Work area lighting
Signal lamp: 3 colors (green, red, yellow)
Operating manuals (English): NC 1 CD with Fanuc manuals and 2 books with mechanical/electrical instructions
Power supply: 220 V, 60 Hz, 3 phase
Machine color: manufacturer standard

OPTIONAL ACCESSORIES (#1)
Automatic tool changer ATC 24 positions - on request
Automatic shutdown for N.C - on request
Turning tool holder type 240TCR - on request
Through-spindle coolant supply: 30 bar (pump pressure) - on request
Transformer 415 V, 50 Hz, 3 phase - on request
Lsdpjxqb D Nefx Af Toru
Linear scales X, Z-axis - on request
Rigid tapping - on request
Automatic tool changer ATC 24 positions - on request

Other notes:
INSTALLATION, COMMISSIONING, TRIAL OPERATION AND TRAINING - not included in the price
INSURANCE AND FREIGHT - not included in the price

Errors in the technical data excepted. The scope of accessories applies only as explicitly described in the article’s text. Any additionally pictured accessories, for example for illustration purposes, are not included in the offer.

The general terms and conditions of JS-Werkzeugmaschinen GmbH apply.
