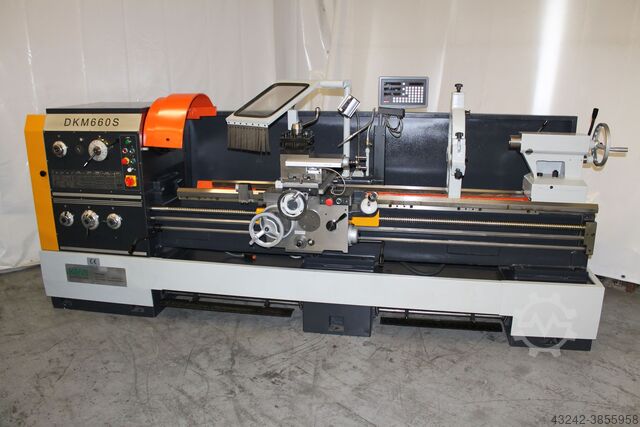

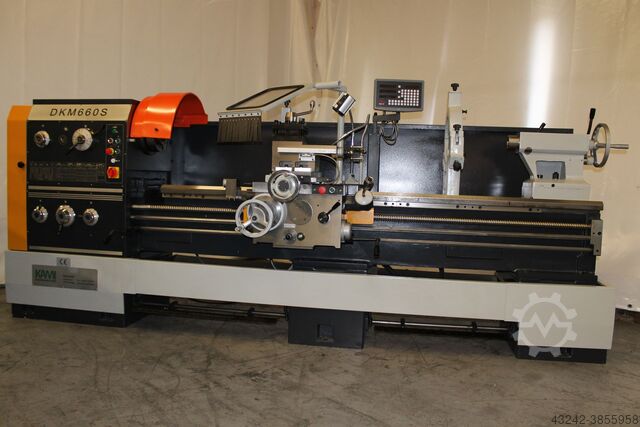

Lathe

KAMI/SHEM DKM 660.3S

Technical specifications
height of Center 330 mm
Length between center 3000 mm
Spindle bore 82 mm
Swing over bed 660 mm
Swing in the gap 840 mm
Swing over slider 420
Speed range 9-1600 rpm (24 steps)
Spindle nose ISO 702 / II No. 8 Camlock
Lrjdpjdzzw Ajfx Af Tsu
Range of longitudinal feeds 0,028 - 6,43 mm / rev (93 steps)
Range of feed rates 0,012 - 2,73 mm / rev (93 steps)
Metric threads 0.5 - 224 mm (48 steps)
Inch thread 72 - 1/8 speed / inch (49 steps)
Module thread 0.5 - 112 mm (42 steps)
Diametral thread 56 - 1/4 DP
Quill diameter 75 mm
Quill travel 150 mm
Quill holder Morse cone 5
Motor power 7,5 kW
Weight 3,300.00 kg
Dimensions 4635 x 1050 x 1450 mm
