Bevel gear grinding machine

Klingelnberg G27

For sale at MONTRASIO GMBH: 2 machines from the Swiss world market leader in bevel gear grinding technology, KLINGELBERG AG.

Series / Model: G 27
Year of manufacture: 2011 + 2012
Type: Bevel gear grinding machine
Condition: Excellent / Grade 1
Application areas: Spiral bevel gears, hypoid gears, planetary gearsets
Industries: Gear manufacturing, automotive transmissions, commercial vehicle and agricultural gear units, forklift transmissions, special gear units, helicopter drives, and many more.

Technical data:
Max. gear diameter: 300 mm
Max. module: 8
Min. module: 0.7
Control: SIEMENS SINUMERIK 840 D solution line (latest software options!)
Min./max. bevel angle: -90° / +90°
Workpiece spindle bore: 127 mm
Grinding wheel diameter: 50 – 230 mm
Spindle speed (stepless): up to 7,500 rpm
Workpiece spindle speed: 700 rpm
Total connected load: 146 kW
Machine weight: approx. 21 t
Machine dimensions: approx. 9.5 × 3.6 × 3.1 m
Measuring probe (integrated on grinding head)
External grinding spindle cooling system
ELBARON integrated oil mist extraction
Djdpfx Afoxlzhdowjcn

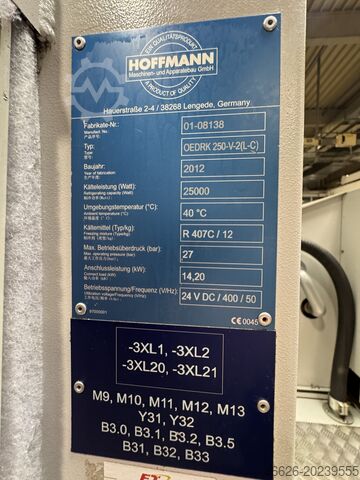

HOFFMANN coolant filtration system per machine

As the machines are immediately available, we are seeking a prompt agreement.
Photos attached.

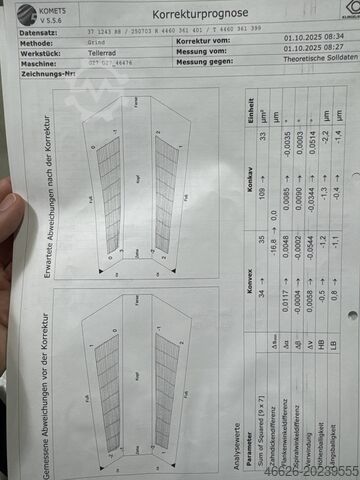

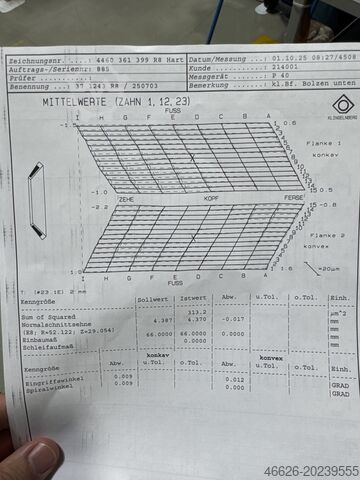

Inspection reports attached.
On-site inspection is possible at any time.
