Injection molding machine

KraussMaffei Technologies GmbH KM 650 / 2000 / 2000 GXW G06

Injection Moulding Machines Directly from the Manufacturer!

As the manufacturer KraussMaffei, we offer you our certified and flexible stock machines:
The hydromechanical two-platen clamping unit of the GXW machine sets new standards in terms of quality and productivity. With the sophisticated GuideX sliding shoe, forces are ideally absorbed and the service life of the moulds is extended. The innovative GearX locking system engages instantly and reliably. Powerful, user-friendly and value-retaining.

TECHNICAL DATA:
KM 650 / 2000 / 2000 GXW G06 (Order 38618339)

CONTROL SYSTEM

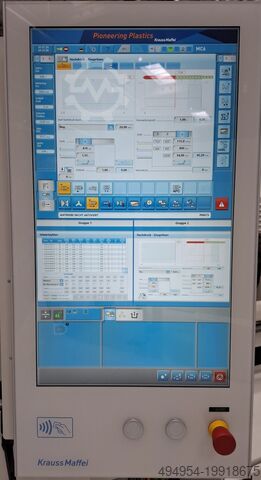

- MC 6 with 24'' TFT color screen with multitouch functions

CLAMPING UNIT
- Clamping force: 6500 kN
- Max. mould opening force: 455 kN
- Daylight opening (h x v): 1110 x 960 mm
- Platen size (h x v): 1540 x 1440 mm
- Mould installation height min. - max.: 1550 mm (without centre platen)
- Opening stroke: 3200 mm
- Max. mould opening distance: 1650 mm
- Max. mould weight: 22,000 kg

INJECTION UNIT 1 SP2000
- Screw diameter / type: 60 mm / thermoplastics
- Effective L/D ratio: 23.3
- Injection pressure: 2420 bar
- Shot volume: 792 cm³
- Shot weight at max. stroke for PS: 720 g
- Injection speed: 140 mm/s
- Injection throughput: 396 cm³/s
- Screw drive speed: 285 rpm
- Plasticizing throughput: 72.2 g/s
- Nozzle contact force: 82 kN

INJECTION UNIT 2 SP2000
- Screw diameter / type: 70 mm / thermoplastics
- Effective L/D ratio: 20
- Injection pressure: 1877 bar
- Shot volume: 1078 cm³
- Shot weight at max. stroke for PS: 981 g
- Injection speed: 140 mm/s
- Injection throughput: 539 cm³/s
- Screw drive speed: 285 rpm
- Plasticizing throughput: 98.3 g/s
- Nozzle contact force: 82 kN

ELECTRICAL PARAMETERS
- Connected load: 341 kW
- Power supply: 400 V / 50 Hz, 3 phases with neutral conductor

WEIGHT & DIMENSIONS
- Net weight: 43.5 t
- L x W x H: 11.89 x 3.22 x 2.77 m

ADDITIONAL EQUIPMENT
- Wear-resistant plasticizing unit
Csdpow U N Ixjfx Afwerh
- BluePower full insulation for plasticizing cylinder
- Open nozzle
- BluePower ServoDrive
- Pneumatic valve: 1-fold (BWAP), 1-fold (FWAP)
- Pneumatic cascade valves: 6-fold (BWAP), 6-fold (FWAP)
- Hydraulic core pull: 2-fold (BWAP), 2-fold (FWAP)
- Mould heating: 96 zones (3.5 kW each)
- Euromap interface for handling: E18
- Euromap central computer interfaces: E67, E77, E78, E63, E82.1
- Adaptive Process Control (APC+)
- Graphic analysis package
- Sliding table with turning unit, servo-driven
- Vertical centre platen
- Parallel clamping & opening during injection process with bar parallelism control between FWAP and centre platen or BWAP and centre platen
- ColorForm interface signal interface for connecting an RPM unit
- Electrical interface for HRS-Flexflow system
- Electrical interface and hydraulic valves for "1-K dummy operation"
- Interface for connecting a CoMo-Kistler Injection Basic System with good/bad part separation

The machine is located at our plant in Parsdorf and is available at short notice. Further additional options can be offered on request.

We look forward to your enquiry.
