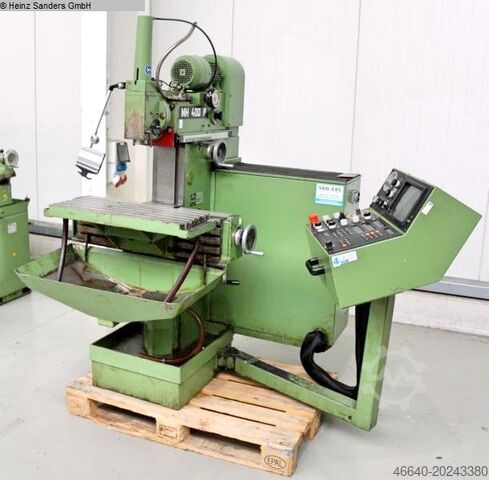

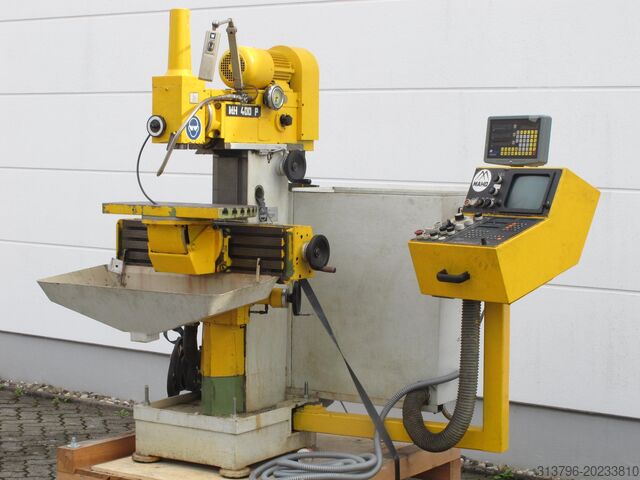

Universal Milling Machine

MAHO MH 400 P

x-travel 400 mm
y-travel 375 mm
z-travel 250 mm
table-size 205 x 800 mm
T-slots 4 x 45 14 H7
speeds 50 - 3150 U/min
tool taper 40 ISO
quill stroke 50,0 mm
Feeds X + Z Axis 5.0 - 1000 mm/min
Feeds Y Axis 5.0 - 670 mm/min
rapid traverse 2.4 / 1.6 m/min
control Heidenhain
total power requirement 5.1 kW
weight 950 kg
range L-W-H 1860 x 1790 x 1750 mm
Machine from a vocational training center
In good condition (!!)

Equipment:
- MAHO universal tool milling/drilling machine

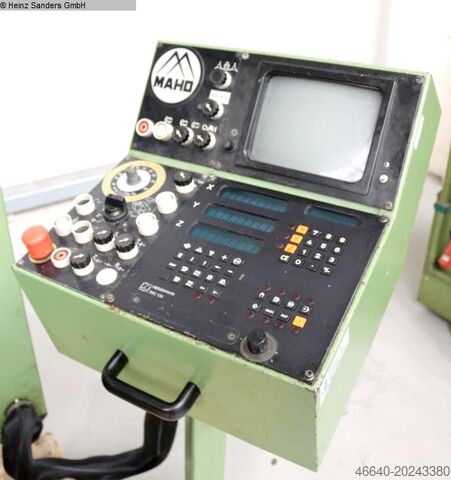

- HEIDENHAIN "TNC 135" positioning/path control
* 3-axis manual data input control
* Programmable by the machine operator
* Convenient and easy operation
- Electric motor-driven feed rates in all axes (X/Z/Y)
* X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min
* Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min
- Tiltable milling head to both sides

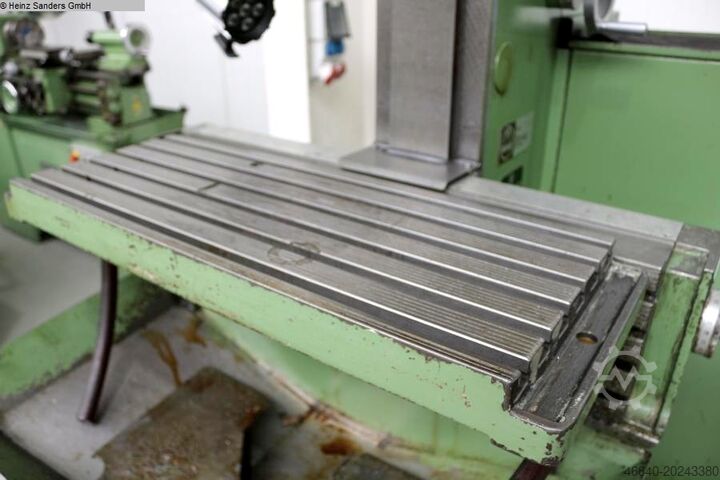

- Tiltable T-slot universal table
- Vertical clamping range

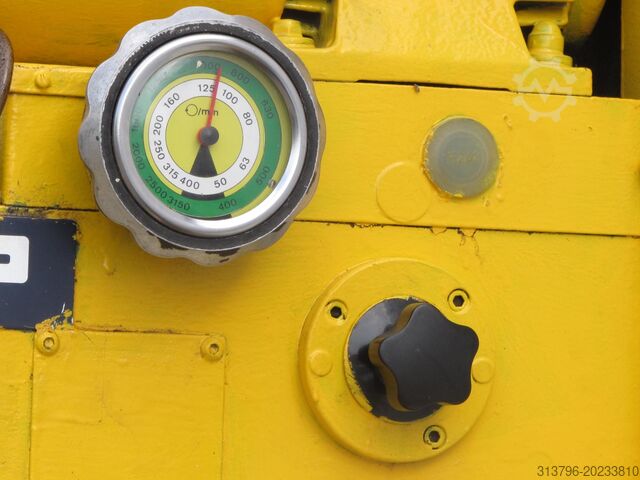

- Continuously variable speed adjustment
Ljdpfx Ajxab Rzef Tehn
- Manually extendable spindle sleeve
- Hardened and ground guideways
- Electro-hydraulic tool clamp
- Coolant system
- Front coolant tank
- Original operating instructions

* Special accessories included:
- 1x RÖHM "RB 110" hydraulic vise
- 1x WALTER "UTA 150 E" dividing head
- 1x drawer cabinet with numerous accessories (!)
