High-bay warehouse Pallet racking system Shelving

Mecalux / 13,96 lfm. / St.: 2.650x1.100mm / Tr.: 2.695 mm

Technical data for the pallet racking system:
Racking system: Mecalux

Technical data for installation:
Number of rack rows: 01 pcs.
Length per rack row: 13,955 mm
Number of bays per shelf row: 05 pcs.
Number of levels plus base level: 02 pcs.

Technical data on volume:
Pallet spaces per bay: 09 pcs.
Pallet spaces per row: 45 pcs.
Total pallet spaces: 45 pcs.

issued from:
Loading equipment: Euro pallet EN 13698-1
Dimensions: 1,200 x 800 x 150 mm
Total height incl. pallet: n.d.
Weight per pallet (max.): 1,000 kg

The scope of delivery includes:
06x pallet rack uprights, used
Material color: blue
Upright profile dimensions: 80 x 70 x 2.0 mm
Upright type: M-81
Incl. cross and diagonal braces,
foot plates
The uprights are pre-assembled
( bolted framework )
2,650 mm high
1,100 mm deep

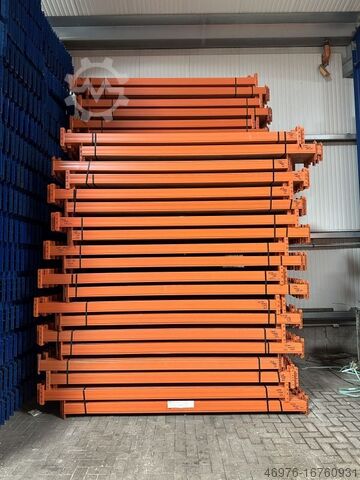

20x pallet rack crossbars, used
Material color: RAL 2001 orange
Beam type: 2C 1115
Box profile: 110 x 50 mm
clear width: 2,695 mm
Max. load per pair of beams
3,000 kg with evenly distributed load

40x locking pin, used
Material color: sendzimir galvanized
To secure the longitudinal beams
against unintentional lifting out

24x bolt anchor, new
Manufacturer: Hilti
Type designation: HST2 M12x105/10
Design: Carbon steel, galvanized
Approved for: Cracked concrete

12x shim plate, used
Design: completely galvanized
For leveling the shelf uprights that are
are set up on uneven floors

01x Load plate
with details of bay and shelf loads,
manufacturer and commission number
Dimensions: 420 x 297 x 3 mm

Your contact persons in our company:
Lajdpfx Abet Uuddstsh

Mr.: Andre Evering
Mr.: Mario Klöver
Mr.: Falk Deutsch

General information about the item:
This item is only offered for collection. Any further desired transportation
or a shipment of this article is associated with additional costs, which can be requested separately
depending on the place of delivery or scope of delivery.
