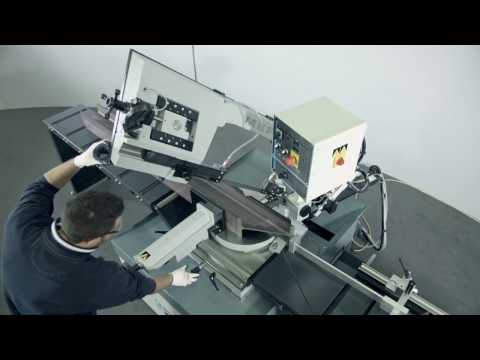

Band Saw

MEP SHARK 332-1 CCS

cutting diameter 300 mm
capacity 90 degrees: flat 330 x 260 mm
capacity 90 degrees: square 260 x 260 mm
capacity 45 degrees: flat 270 x 200 mm
capacity 45 degrees: round 250 mm
capacity 45 degrees: square 250 x 250 mm
capacity 60 degrees: flat 170 x 170 mm
capacity 60 degrees: square 170 x 170 mm
capacity 60 degrees: round 180 mm
turning speed range: 40 / 80 m/min
saw band length 3650 x 27 x 0,9 mm
weight of the machine ca. 640 kg
Equipment:
- robust electro-hydraulic band saw (INDUSTRY)
- large bearing-mounted rotary table
* for miter cuts from 45° right to 60° left
- automatic saw bow lowering
* with continuously adjustable feed
* limit switch at the end of the cut
Dcodpfxsxaaqte Afwen
- manual cutting function selectable
- saw band guide made of hard metal plates
- 1x saw band
- 1x angle stop
- moving chip removal brush
- control panel - front right
- hydraulic pressure box for saw band tension
* with analogue pressure display (manometer)
- machine base frame with forklift pockets
- coolant system
- operating instructions in German
