Vibration test system

RMS SWR 900 SW 3709 u. TGD 6000

RMS
Type: SW 3509 + amplifier TGD 6000-000.00 and fan
Test Manager SWR 900
Power amplifier: TGD 6000
Vibration exciter: SW 3709
High-pressure fan HVM 80-100 GL 270
RMS electrodynamic vibration test system:
Technical data system:
Performance data
Max. Vector force sine 7.5 kN
Max. Vector force noise 6.75 kN
Max. Vector force shock 13.1 kN
Frequency range 0 - 3000 Hz
Mass of the vibrating system (Dyn.) 9 kg
Main resonance (unloaded) 2.5 kHz
Max. Amplitude (sine) 18 mm
(noise, shock) 26 mm
Max. speed (sine) 1.5 m/s
(noise, shock) 2.5 m/s
Max. Acceleration sine
vibrating system unloaded 833 m/s²
Additional load 10 kg 394 m/s²
Additional load 30 kg 192 m/s²
Additional load 50 kg 127 m/s²
Max. Acceleration noise
Additional load 30 kg 173 m/s²
Max. Acceleration shock
vibrating system unloaded 1450 m/s²
Additional load 30 kg 335 m/s²
Stray field
Stray field without counter field coil
On the table surface 20 mT
120mm above the table surface 7 mT
Stray field with counter field coil
On the table surface 10 mT
120mm above the table surface 2 mT
Vibration isolator
Operating range vertical/ horizontal
Resonant frequency 2.7 Hz
Operating air pressure 5 bar
Pneumatic weight compensation
Max. Weight compensation 250 kg
Operating air pressure 2.3 bar
Cooling Vibration exciter air
min. Cooling air volume 9 m/min
Max. exhaust air temperature (based on room temperature 35°C) 80°C
Power booster air
Heat dissipation to room air 1.5 kw
Emission:
Sound pressure level
1m - distance at a height of 1.6m 105 dBA
Electromagnetic field SW 3709
typ. 1.5 mT ( 50Hz)
typ. 0.5 mT (100Hz)
Electromagnetic field TGD 3000
typ. 150 HT (50Hz)
Dimensions / Weights

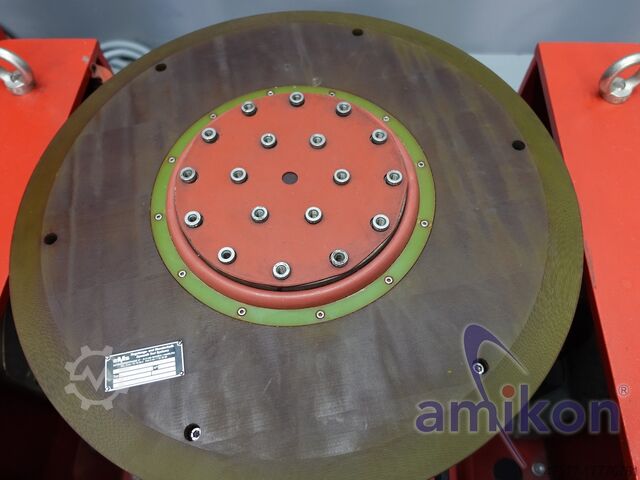

Table diameter / insert thread 224mm / M8

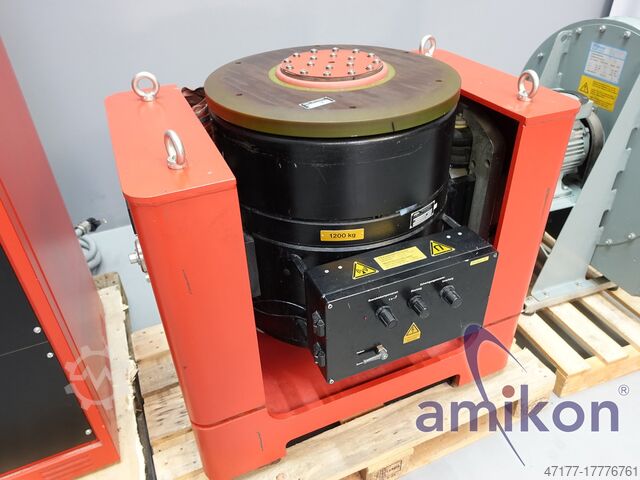

Vibration exciter with integrated isolators
970 × 695 x 950 mm (W x D x H)
Weight: 1200 kg

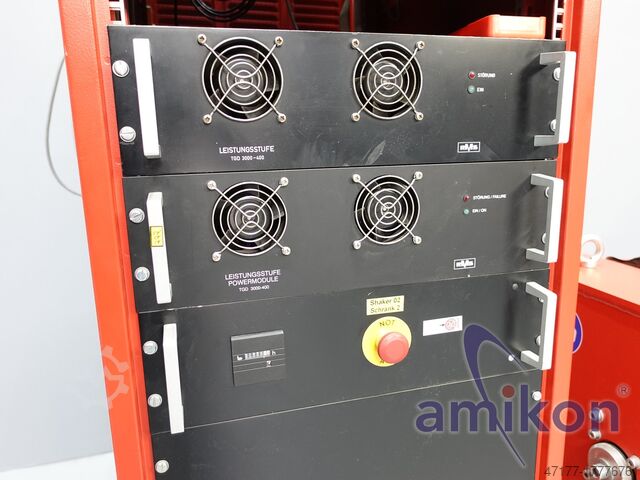

Power amplifier 550 x 700 x 2075 mm (W x D x H)
Weight: 270 kg
Cooling fan 839 x 582 x 900 mm (W x D x H)
Lrjdpsu Tud Hefx Af Tju
Weight: 80 kg
Connection values:
Mains voltage +6/-10% 3 x 400V, 50Hz
Connected load 18 KVA
Power consumption (sweep mode sine wave) 12 kW
Total weight approx. 2000 kg
Condition: used

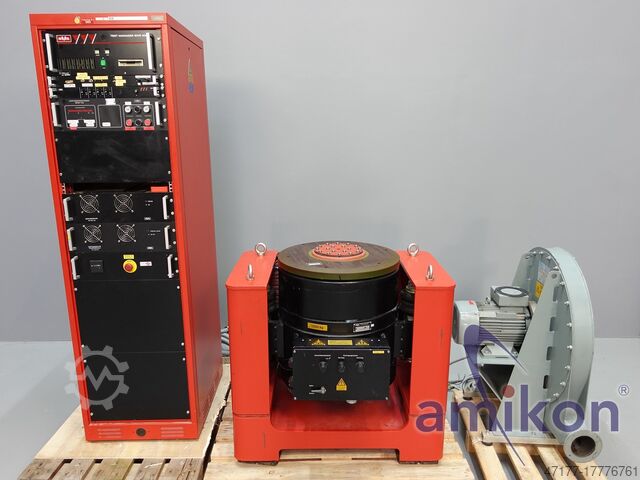

Scope of delivery: (see picture)
(Changes and errors in the technical data, specifications are reserved!)
We will be happy to answer any further questions you may have on the phone.
