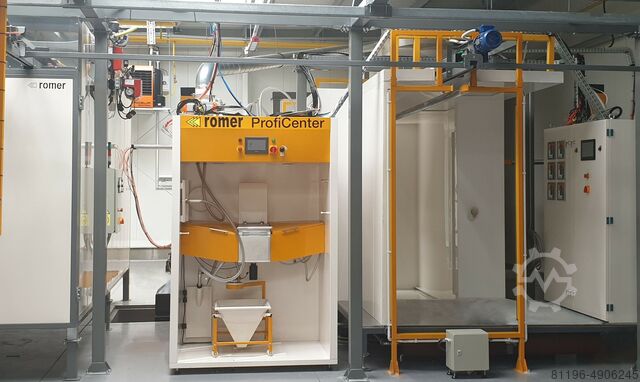

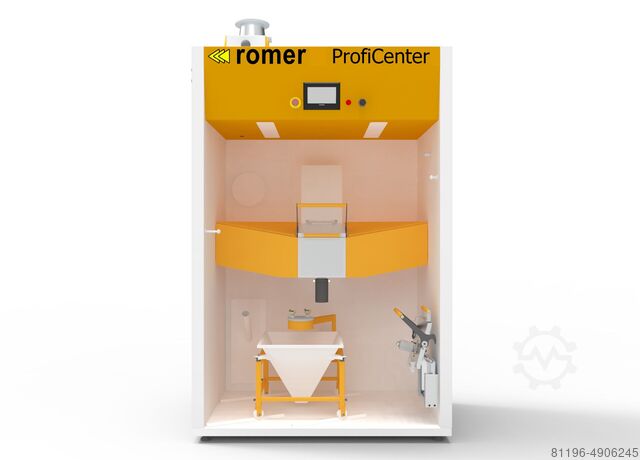

ProfiCenter (CP02)

ROMER CP-02

Pneumatic connection 1 "

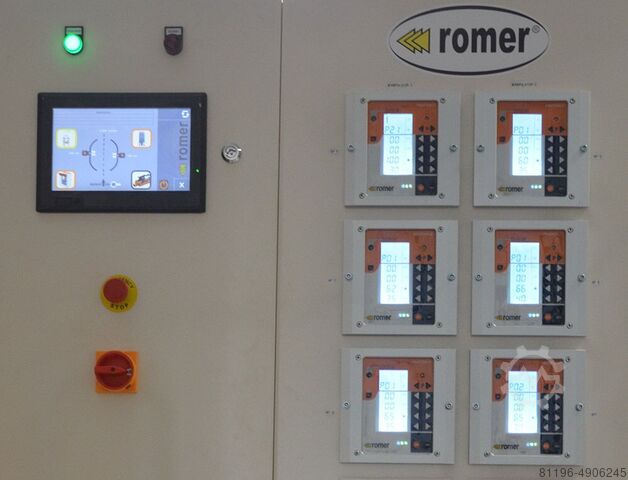

• Controls 7 "color touch panel
• Paint tank capacity 6-7 kg
• Air consumption during painting 15Nm3 / h
• Air consumption for cleaning 350Nm3 / h
• Hopper paint level sensor Yes
• Ultrasonic screener Yes
• Powder injectors up to 12 pcs
Description
• RP-01 pump for topping up the paint with fresh paint from cardboard
• Two modes of operation, paint recovery with mixing or total waste
Lodjfz Dkgspfx Af Toru

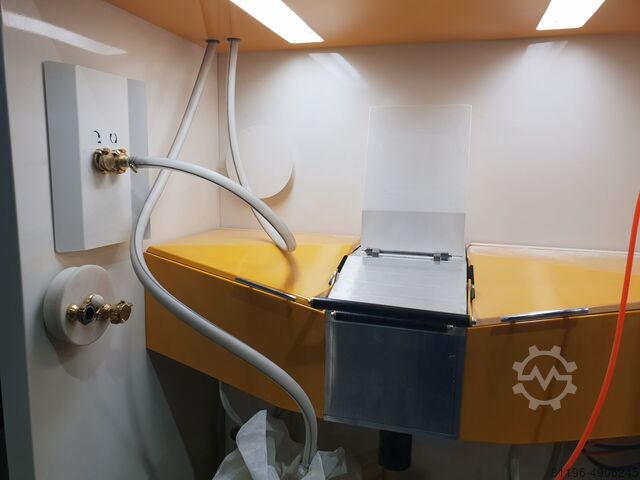

• Sealed fluidization paint hopper
• Automatic program for cleaning the tank and injectors with compressed air
• Hopper powder level sensor assembly
• Automatic refilling of the tray with paint from cardboard
• Paint level sensor in refill box
• An audible alarm alerts the operator when there is low paint in the box
• The center is connected with the cabin control via ModBus protocol
• Programmable powder suction valve to keep the powder center clean
