Briquetting press

RUF Lignum Classic

*one machine is ready for delivery and ready produced

Press can only be supplied with a system component such as a chipper, cutting mill, hammer mill, screw conveyor, conveyor belt with overbelt magnet or suction

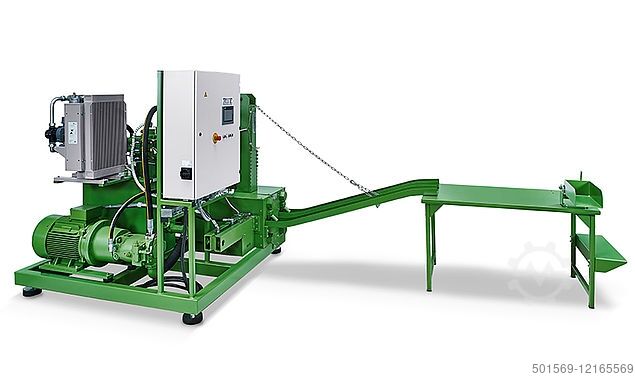

RUF briquetting press for rectangular briquettes
Lrjdpfsfhql Tjx Af Tsu
Very robust and established machine

The ideal machine for professional, industrial briquette sellers.
Classic type - throughput up to 425 kg / h * depending on the material

Options for an extra charge:

Plant construction / mütek system technology:
- mütek shredder MRZ shredding technology
- conveyor belts
- Overbelt magnets
- Extraction systems, optionally with rotary valve
- screw conveyors
- silos
- Control links of all kinds
- semi-automatic packaging technology

Press:
- Packing table with drawer
- Top-mounted silo with discharge

Your advantages:

Most important point:
+ Very established, well-engineered die press thanks to 25 years of experience. The difficulty and the know-how lies in the detail. For example, valves and cylinder seals of the highest quality.

+ 24h operation possible
+ Longevity
+ Low maintenance costs
+ Compact structure
+ High energy efficiency thanks to innovative hydraulics

Technical data briquetting press:
Throughput: up to 425 kg / h *
* depending on the bulk weight of your raw material
* based on a bulk weight of 200 kg per cubic meter
Detailed information after a successful test with your material. If no test material is made available to us, we cannot make any statements about the briquette quality and throughput.
Briquette dimensions: 150 x 60 mm
Briquette length: 40 to 105 mm (adjustable)
Hydraulic pre-compressor
Main hydraulic compressor
Pressing pressure: up to approx. 1700 kg / cm²
Hydraulic system with 260 liter oil tank
Pump motor: 30 kW / 400V / 50Hz / 3 ph
Manual operation of all cylinders
"Dustproof" switch cabinet
with PLC control and touch display
Total power consumption of the briquette press: approx. 33 KW
Muxzr8

Requirements for the raw material:
- The moisture content (atro) must be between a minimum of 6 and a maximum of 15%
- Maximum chip length: 20 x 2 x 2 mm
- temperature where machine is placed + 8 degrees
- The loading must be free of metals and mineral impurities such as sand, stones, etc. This can result in damage to the pressing tools and / or increased wear.
