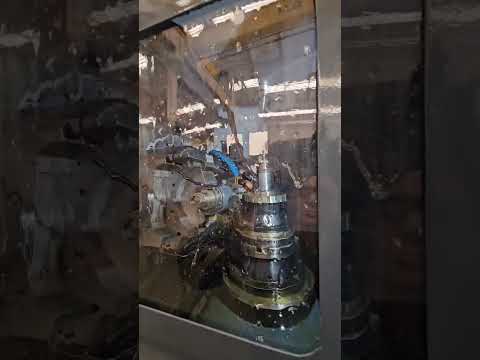

Gear Hobbing Machine

S&T Dynamics GHO 500

Maximum pitch: Module 12
Maximum diameter: 700 mm
Axial travel (Z-axis): 400 mm
Radial travel (X-axis): 500 mm
Tailstock stroke: 600 mm
Max. tool speed: 400 rpm
Max. Hob diameter: 300 mm
Max. Hob length: 300 mm
Standard Hob spindle: 40 mm
Table diameter: 450 mm
Chjdpfx Acjxhgzhsusc
Tool holder chuck cone: NT 50
Angle of head inclination: 35 degrees
Max. table load: 1800 kg
Supply voltage: 380 V
Integrated with SIEMENS SINUMERIK CONTROLLER 840D
