Stoll GmbH - JRIMAC Sägetechnologie JRIMAC Längskreissäge TOP

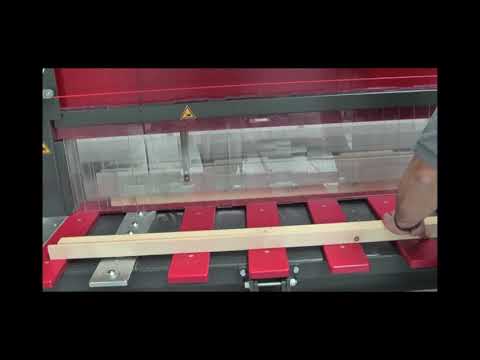

JRIMAC rip saw "TOP" - NEW -

- Cutting length 2200 - 9200 mm
- Cutting width 420 - 2120 mm
- Cutting direction left - right (right - left on request)
- Cutting height max. 210 mm with high-quality saw blade Ø 620 mm.
- Precise and clean cut due to strong, self-supporting welded construction of the machine stand.
- Carriage guidance via linear guides, with ball-bearing mounted, maintenance-free rollers.
- Safety beam mounted above the machine table with 6 mm thick lamella protection.
Crjdpfx Acogk Nvneush
- Extraction connection Ø 160 mm installed at table height at top right and bottom left ready for connection.
- Flexible and efficient working thanks to 250 mm opening of the slat guard above the top edge of the table.
- Infinitely variable, frequency-controlled, powerful feed of the carriage.
- The maximum feed speed can be adjusted.
- Automatic stepless saw blade height adjustment.
- Infinitely variable width stop adjustment via several operating levers.
- Electronic positioning control.
- JRIMAC" saw blade quick clamping system allows quick saw blade changes.
- Cut release as standard (small mobile foot pedal).
- Front table supports made of wood, plastic or Pertinax coating.
- High work safety.
- Only high-quality components are used and installed.
- The electrical control cabinet is easily accessible at the front of the machine.
- The machine electrics are designed for 230/400 volts, 50 Hz.
- BG dust-tested
- EC type-tested in accordance with Directive 2006/42/EC
- Forcibly guided splitting wedge
- Processing of more than 12 different materials possible
- Reliable spare parts and customer service
