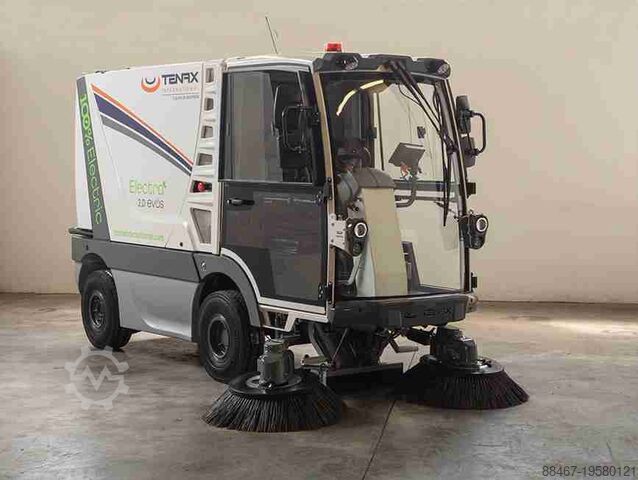

Sweeper

Tenax Electra 2.0 evos+

100% Electric Street Cleaning Machine -
New Electric Vehicle

Operating Autonomy
8–10 hours

Max. Driving Speed 32 km/h
(only in conjunction with lithium batteries and hydraulic
steering)

Standard Equipment:

Battery Version + Charging

Lithium-ion batteries LiFePO4, 48 V, 1000 Ah, 50 kW
+ (external three-phase charger 7.2 kW)

Chassis

Independent hydraulic suspension on all wheels

Electronic inverter controls with regenerative braking
and torque control on front and rear wheels

All-wheel steering in operating mode up to 10 km/h for a very tight turning radius (over 10 km/h, only front wheels drive for stability)

Radial tires 6.50-12 PR

Drum brakes at the front – disc brakes at the rear.

Electric motors on the rear wheels/rear-wheel drive

Engine

Engine type: 2 x 19 kW asynchronous AC motors, rear

Engine power: 38 kW in continuous operation

Interior equipment

Pneumatic, heated driver's seat with headrest and
three-point belt

LCD monitor + rear view camera + camera with LED headlights
on the suction nozzle

Bluetooth USB radio

Electric air conditioning and heating with pollen filter

Cup holder in the cab

Tool storage compartment with integrated footrest

Safety and equipment components

Self-regulating reversing buzzer (AVAS)

Suspended and tilting right-hand drive two-seater cab made of
aluminum

Steel rear bumper

Emergency pump for manual hopper lifting

2 kg powder fire extinguisher

One-touch system - all functions start immediately (on/off)

Centralized lubrication (without Pump)

Customer tracking system pre-installation (Tenax Link and GPS)

Sweeping functions and equipment

Sweeping hopper/suction nozzle made of AIS 304 stainless steel

Pedal-operated flap for collecting larger debris

"Turn & Follow" system for automatic brush repositioning
and manual independent repositioning with joystick

5" connection socket for hydrant filling

Dust control

2 spray nozzles on the front brushes

Additional spray nozzles on the suction nozzle and in the
suction line - can be activated individually

400 l water tank

Dimensions / Weights

Length: 3820 mm
Nlsdpfov Ivplsx Af Tsh

Length with third brush: 4280 mm

Width: 1200 mm

Height with rotating beacon: 2000 mm

Wheelbase: 1680 mm

Sweeping width 1900–2270 mm mm

Sweeping width with 3rd brush: 2540 mm

Unladen weight: 2400 kg, 3050 kg

Maximum total weight: 3500 kg (N2 = 4250 kg available upon request)

Maximum permissible payload: 1900 kg (N2 1250 kg)

Speed: 32 km/h
