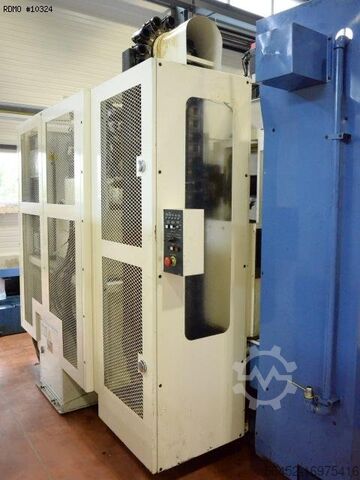

Horizontal machining center

TOPPER HA 400

TECHNICAL DETAILS
- Number of axes : 4
MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 22 [kW]
Kodsuhbv Eepfx Abkonc
- Spindle speeds : 12.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 560 x 560 x 560 [mm]
- Rapid traverses rates (X/Y/Z) : 40.000 [mm/min]
- Cutting feed rates (X/Y/Z) : 1 - 20.000 [mm/min]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 1 [°]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 60
- Tool exchange time : 1,2 [sec]
PALLET CHANGER
- Pallet changing device type : Rotopalette
- Pallet size : 400 x 400 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 400 [kg]
- Distance table / spindle axis (min./max.) : 80 - 640 [mm]
- Distance table center / spindle nose (min./max.) : 150 - 710 [mm]
- Maximum workpiece diameter : 600 [mm]
- Maximum workpiece height : 700 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3.600 x 3.750 [mm]
- Machine height : 2.828 [mm]
- Machine weight : 9.500 [kg]
MACHINE HOURS
- Number of hours under power : 9.893 [h]
- Number of working hours : 2.138 [h]

EQUIPMENT
- CNC : Fanuc 18-iM
- Electronic handwheel
- Rigid tapping
- Coolant tank
* Coolant through spindle
* With cabin washing
- Chips conveyor
- Spindle cooling unit
