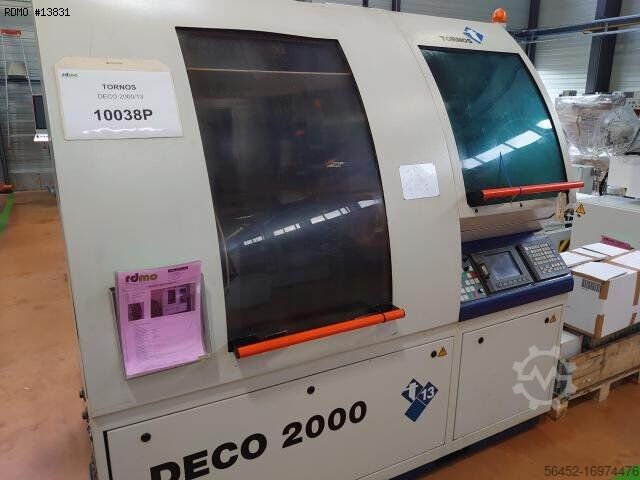

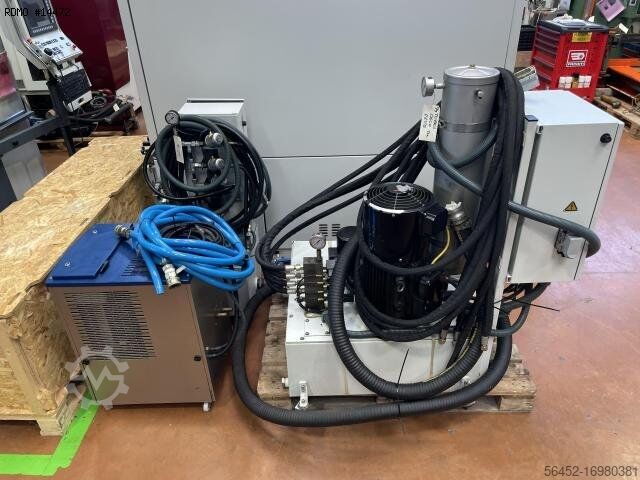

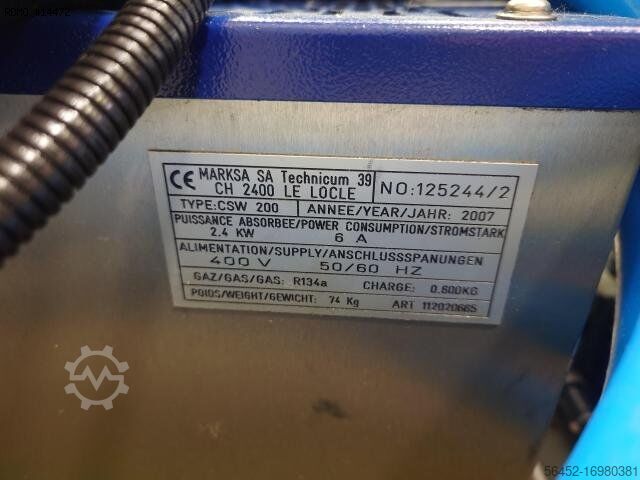

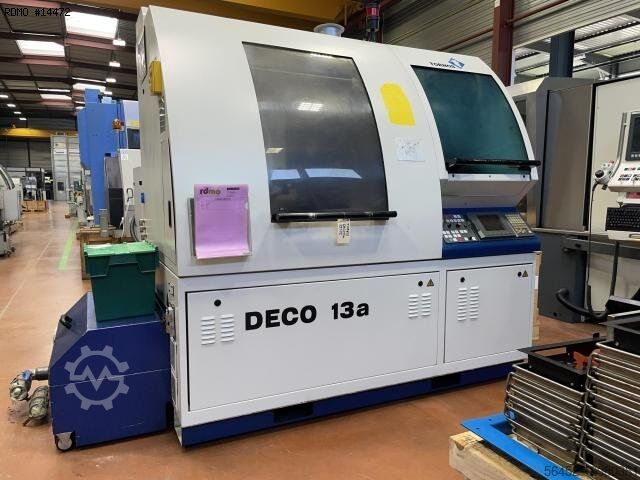

Bar automatic lathe

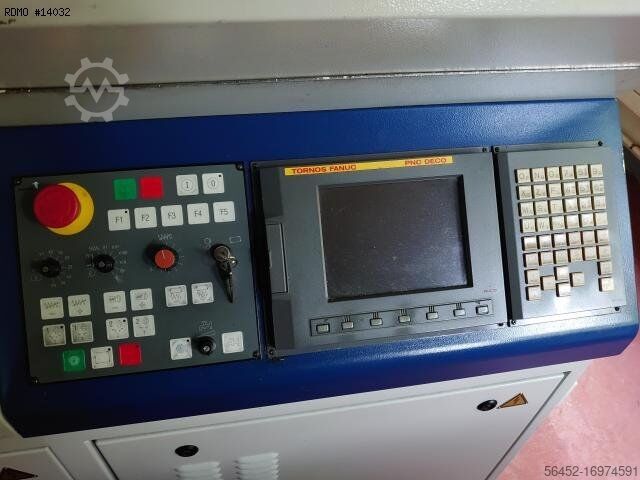

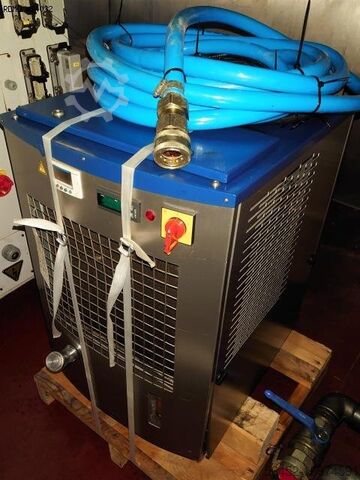

TORNOS Deco 13

Country of manufacture: Switzerland
Net weight: approx. 2550 kg
Customs tariff number: 8458.11 20
Dimensions: 2000 x 1260 x 1950 mm

TECHNICAL CHARACTERISTICS

10-axis machine – standard version

10 axes, 6 spindles:

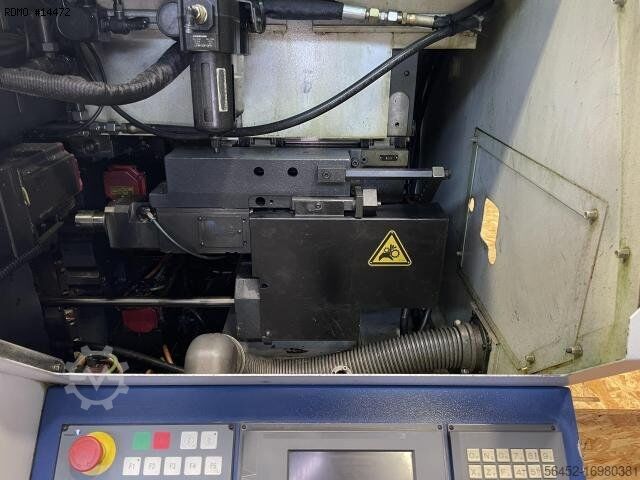

Axes and spindle designation:

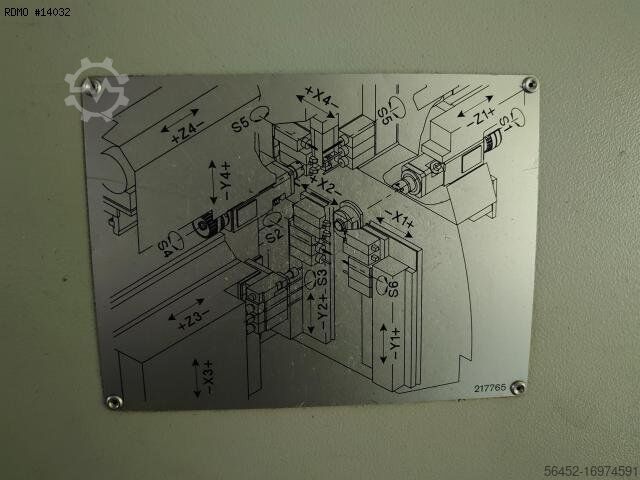

- 1 sliding headstock: Z1, S1
- 2 independent vertical gangs: X1Y1, S6 – X2Y2, S2
- 1 unit with 4 rotating spindles: X3Z3, S3
- 1 independent sub-spindle: Y4Z4, S4
- 1 independent rotating sub-operation axis: X4, S5

Bar feeder position: right of the operator
Machine axis height: 1100 mm
Main spindle travel: max. 255 mm
Bar capacity: 1 to 16 mm
Spindle speed: 12,000 rpm
Spindle feed rate: max. 20 m/min

Bar capacity, min./max.: 13 mm / 16 mm

Max. workpiece length:
Guide bush machining: 180 mm
Collet machining: 30 mm

Sub-spindle speed: 12,000 rpm
Lodpfjw Uc D Hox Ad Eohn

Main spindle drive power: 2.2 kW (continuous) / 3.7 kW (intermittent)
Sub-spindle drive power: 1.5 kW (continuous) / 2.2 kW (intermittent)

Clamping collet, type: F20 (no. 76-201)

Guide bush: fixed / rotating

Collet for guide bush, type: Meister 605

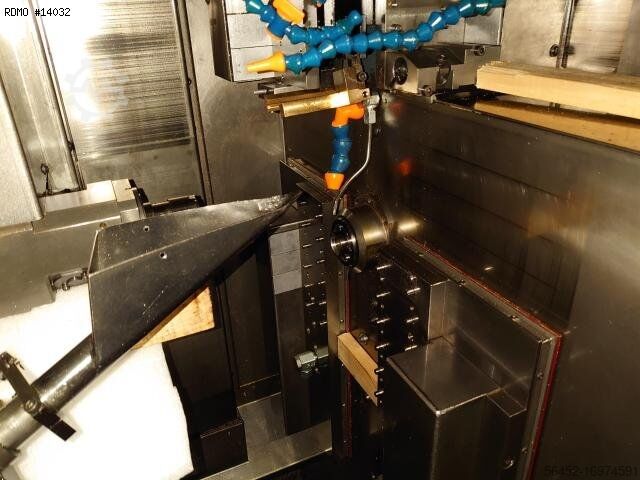

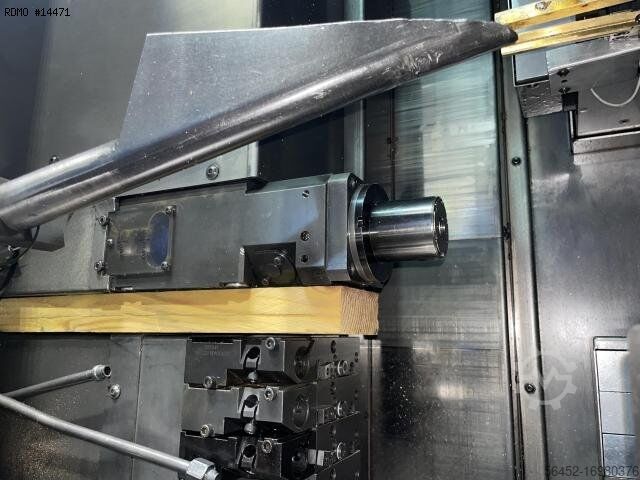

Number of lateral tool stations, combined:
Fixed: 2 x 5
Rotating: 3 + 3

Number of frontal tool stations, combined:
Fixed: 4
Rotating: 3

Number of rear tool stations, combined:
Fixed: 3 + 3
Rotating: 3 + 3

Tool section: 12 x 12 mm

Standard revolving toolholder: ESX 20

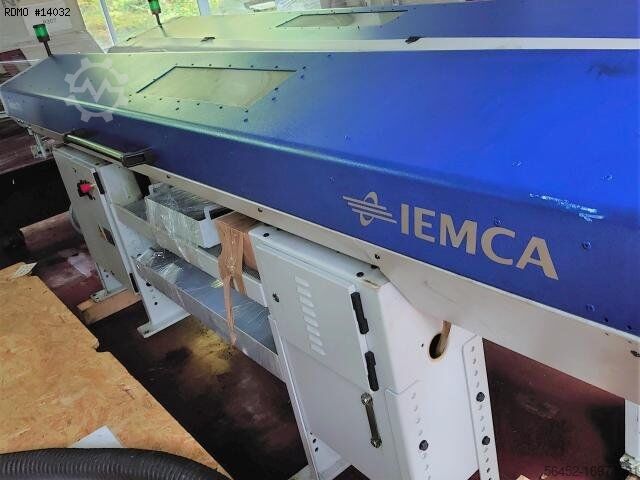

Bar feeder: yes

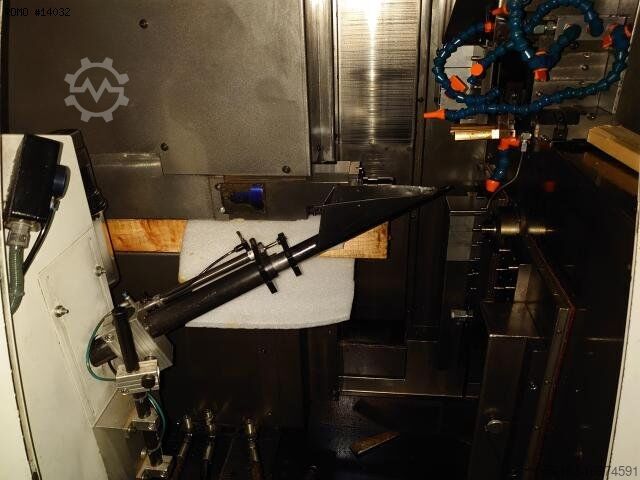

Part catcher: yes

All technical details are provided without guarantee and subject to errors or omissions.
