Conveyor belt

Tribelt Chain strap-woven grid conveyor 6191 Tribelt

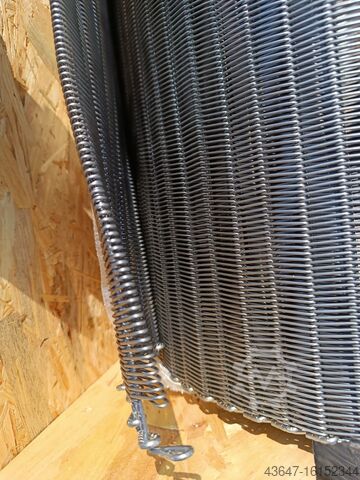

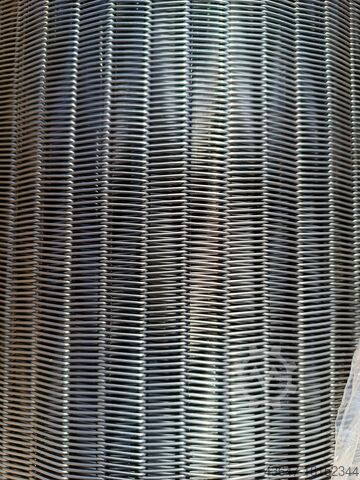

The flat spiral belt with S-hook is a woven belts consisting of left and right spirals which are twined together by means of straight cross rods. The spirals are attached under post-tension, whereby a very dense belt surface is created.
The cross rods at the end are bended in the direction of the previous cross rod. The cross rod is then bended around the previous cross rod.

Weight 800kg
Width 3.75m
Diameter of chains 1.2mm



The flat spiral belts with S-sides are practically familiar with a restricted amount of applications. This however doesn’t mean that the belt type can’t be used for other applications:

Lsdpfx Astp S E Eobteah
– Oven belts in bread & pastry in industry
– A special version of the above mentioned is with duplex chains at the sides
– Belts in tunnels serving high temperature treatment processes such as tempering, harden, sintering, hard soldering, etc.
