Headlight test bench

Weiss / Vötsch VCS³ 4100-5-S (Indoor & Outdoor) Scheinwerferprüfstand

Vötsch
"Headlight Test Bench – Weiss/Vötsch VCS³ 4100-5-S (Indoor & Outdoor), available from calendar week 40"

Year of manufacture: 2018

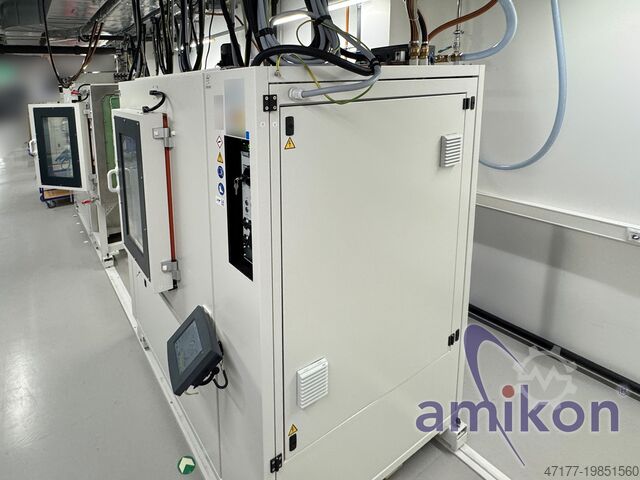

For sale is a complete temperature and climate testing system for front headlights, consisting of two coupled Vötsch VCS³ 4100-5-S climate test chambers (indoor & outdoor versions). The system was specially developed for the automotive industry and enables combined environmental testing to OEM standards.

Main Features
- Temperature and climate testing
- Rain/spray simulation (flow rate 1–18 l/min, spray temperature 5–32 °C, 200 l tank)

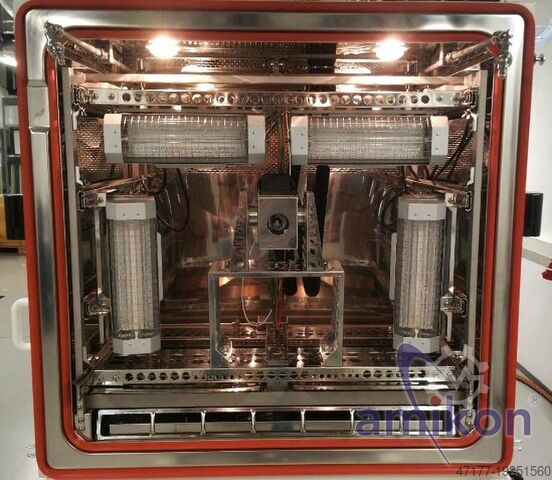

- Infrared irradiation (4 × 1.2 kW) for solar load simulation
- Vacuum unit (0–50 Pa) for leak testing
- Airflow up to 15 m/s (driving wind simulation)
- Real-time webcam monitoring
- Comprehensive sensor suite (temperature and humidity sensors)
- Additional power supplies for test specimens (12–48 V)

Outdoor chamber (VCS³ 4100-5-S Outdoor):
- Temperature range: –20 … +80 °C
- Heating rate: 5 K/min | Cooling rate: 3 K/min
- Humidity range: 4 … 95% rH
- Dew point range: –30 … +79 °C
- Extras: webcam, 5 temperature sensors

Indoor chamber (VCS³ 4100-5-S Indoor):
- Temperature range: –20 … +125 °C
Chedpfx Acjw S Ilkeuoc
- Heating rate: 8 K/min | Cooling rate: 5 K/min
- Humidity range: 4 … 95% rH
- Dew point range: –30 … +88 °C
- Vacuum unit: 0 … 50 Pa
- Airflow: 0 … 15 m/s
- Extras: 4 power supplies (12–48 V), 3 temperature sensors, 2 humidity sensors

Application areas
Ideal for testing headlights and similar components under real-world conditions. Suitable for use in automotive development, quality assurance, approval tests, and durability testing.

Weight estimation (approximate)
- 2× Vötsch VCS³ 4100-5-S base units: approx. 2 × 840 kg = 1,680 kg (typical catalog value per unit).
- Additional equipment/peripherals (rain, IR, vacuum, airflow, control cabinets, cabling, partition wall): approx. +400 to +900 kg.
- Water in tank (200 l): +200 kg during operation.
- Transport “dry” (empty tank): approx. 2.1–2.6 t
- Operation “wet” (full tank): approx. 2.3–2.8 t
- Summary: approx. 2.1–2.8 t

Scope of delivery
- Vötsch VCS³ 4100-5-S indoor chamber
- Vötsch VCS³ 4100-5-S outdoor chamber
- Partition wall for VCS³ 4100-5-S
- Dimensions: Height × Width = 80 × 80 cm
- Rain/IR/vacuum/airflow units
- Condition: used
- Scope of delivery: (see picture)

(Changes and errors in technical data, specifications reserved!)
For further questions, please feel free to contact us by phone.
