FAYMONVILLE Multimax Satteltieflader (2+2) - nachlaufgelenkt

You can find our entire vehicle stock, including immediately and soon-available vehicles, on our website.

Excerpt from the equipment list. Full equipment details available upon request.

Gooseneck
* SNT design for optimizing the loading deck length
* Length approx. 4,100 mm, front with beveled corners approx. 400 x 400 mm
* Rear with slope approx. 1,000 mm x 10°
* Steel front wall, removable, approx. 400 mm high
* Removable aluminum rear wall on gooseneck, approx. 400 mm high, anodized finish
* 2 pairs of lashing rings (LC 16,000 daN) mounted inside the gooseneck’s outer beams, rotated approx. 45°
* 1 pair of lashing rings (LC 10,000 daN) at the front inside the gooseneck’s outer beams, rotated approx. 45°
* 2 pairs of stake pockets recessed into the gooseneck for plug-in stakes approx. 100 x 50 mm
* 2 additional pairs of bolted lashing rings (LC 5,000 daN)
* 2 pairs of lashing rings with retaining spring, suspended on the gooseneck’s outer beams (LC 5,000 daN)
Cjdpfxjxcdm De Acusrh
* On the gooseneck: 1 pair of removable aluminum sideboards, approx. 1,200 mm long, approx. 400 mm high, anodized finish
* 3.5-inch kingpin

Loading Platform
* Telescopic loading platform, length approx. 9,300 mm, with rear slope approx. 500 mm x 10°
* Recess in the slope and extending into the platform to accommodate excavator stick, approx. 2,490 x 750 x 210/290 mm (L x W x H)
* Continuous hardwood floor, interrupted between axles, approx. 50 mm thick (increases coefficient of friction)
* Platform locking with conically welded locking profiles every approx. 250 mm
* Includes tension plate
* 1 pair of recessed flat lashing rings in the fixed front part of the loading deck (LC 10,000 daN)
* 9 pairs of recessed lashing rings on the outer frame of the platform, foldable outward (LC 10,000 daN)
* 5 pairs of stake pockets recessed in the outer frame, for plug-in stakes approx. 100 x 50 mm
* 1 crosswise stake pocket rail in the fixed support of the platform, for plug-in stakes approx. 100 x 50 mm
* Wheel recesses with square climbing strips, approx. 15 x 15 mm
* Wheel recesses in front of the axles open continuously up to the gooseneck’s cross member, approx. 1,310 x 700 x 410 mm (L x W x D)
* Wheel recesses between the 2nd and 3rd axles, approx. 1,310 x 700 x 250 mm (L x W x D)

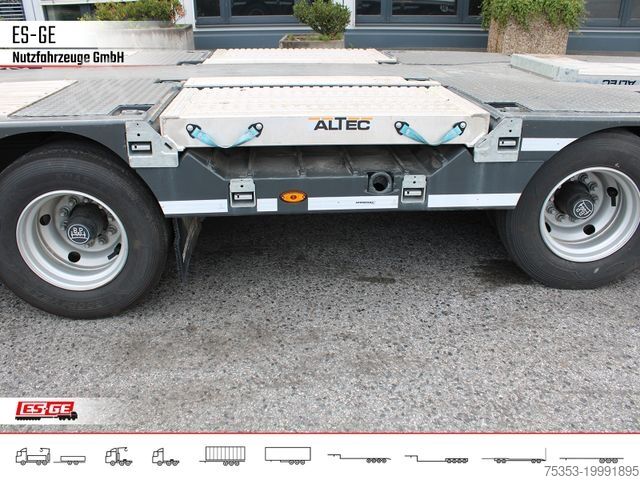

* Aluminum covers for wheel recesses, which can also be used as bridging elements for the extension OR as widening planks
* In front of and behind the rear wheel recess, 1 pair of flat lashing rings (LC 10,000 daN) each in the outer frame of the platform
* WADER container pockets in the platform and gooseneck for transporting 2x 20' containers
* 1 above the gooseneck with long-goods support
* 1 in the platform; extensions (galvanized) extendable by approx. 230 mm per side
* Detachable widening planks, steel-framed
* 4 pairs of plug-in WADER container locks
* Long-goods support in the recessed deck level with the gooseneck, required for transporting 2× 20' containers
* 1 pair of aluminum VFR 120 ramps, approx. 2,400 x 620 x 120 mm (L x W x H)

Chassis
* BPW axles and suspension
* 1st and 2nd axles rigid
* 3rd and 4th axles self-steering with electromagnetic reverse lock via reverse gear and manual activation
* Air suspension with lift and lower valve
* Tires: 235/75 R 17.5 3PMSF, dual tires
* 1st axle with automatic lift axle function

Brake system
WABCO EBS-E compliant with EU regulations

Landing Legs
* Me
