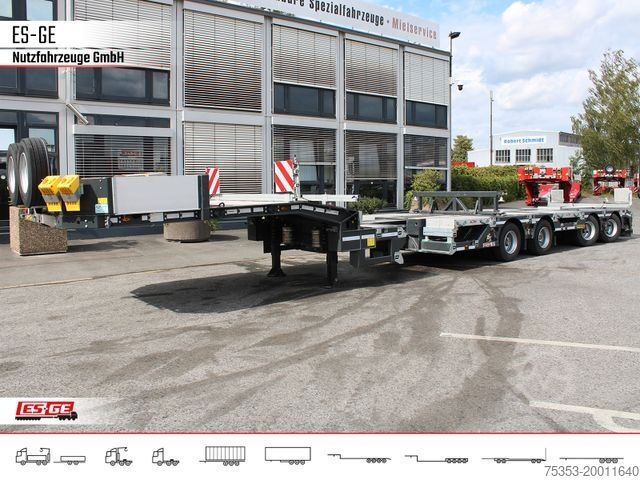

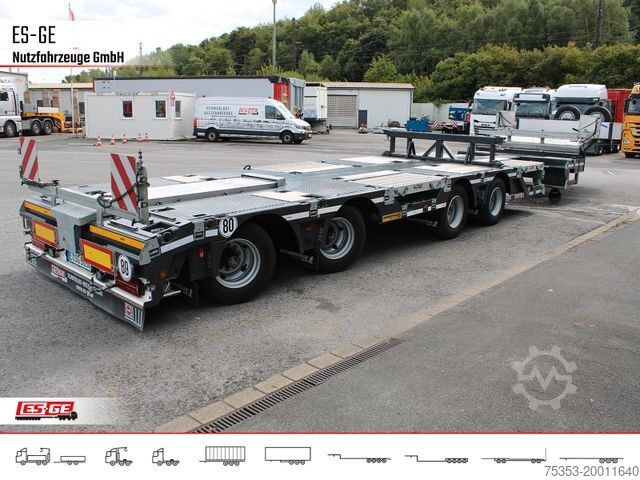

FAYMONVILLE Multimax Satteltieflader (2+2) - nachlaufgelenkt

You can find our complete inventory of immediately and soon available vehicles on our website.
Cedpfx Acexc Ax Eoushc

Below is a selection of features. Complete specifications available upon request.

Gooseneck
* Designed in SNT format to optimize loading platform length
* Length approx. 4,100 mm, front with chamfered corners approx. 400 x 400 mm
* Rear chamfer approx. 1,000 mm x 10°
* Steel front wall, removable, approx. 400 mm high
* Plug-in aluminum rear wall on the gooseneck, approx. 400 mm high, anodized finish
* 2 pairs of lashing rings (LC 16,000 daN) integrated inside on the outer beams of the gooseneck, rotated approx. 45°
* 1 pair of lashing rings (LC 10,000 daN) integrated inside at the front of the gooseneck outer beams, rotated approx. 45°
* 2 pairs of stake pockets integrated in the gooseneck, for plug-in stakes approx. 100 x 50 mm
* 2 additional pairs of bolt-on lashing rings (LC 5,000 daN)
* 2 pairs of lashing rings with retaining spring, suspended on the outer beams of the gooseneck (LC 5,000 daN)
* 1 pair of plug-in aluminum side boards on the gooseneck, approx. 1,200 mm long, approx. 400 mm high, anodized finish
* 3.5-inch kingpin

Loading Platform
* Telescopable loading platform, length approx. 9,300 mm, with rear chamfer approx. 500 mm x 10°
* Recess in the chamfer and extending into the platform for excavator stick approx. 2,490 x 750 x 210/290 mm (L x W x H)
* Continuous hardwood flooring approx. 50 mm thick on the platform and interrupted between axles (increases friction coefficient)
* Platform locked with conically welded locking profiles every approx. 250 mm
* Including pre-tension plate
* 1 pair of recessed horizontal lashing rings in the fixed front part of the platform (LC 10,000 daN)
* 9 pairs of recessed lashing rings in the outer frame of the platform, foldable outward (LC 10,000 daN)
* 5 pairs of stake pockets integrated in the outer frame of the platform, for plug-in stakes approx. 100 x 50 mm
* 1 crosswise stake pocket rail mounted in the fixed support of the platform, for plug-in stakes approx. 100 x 50 mm
* Wheel wells with square climbing strips approx. 15 x 15 mm

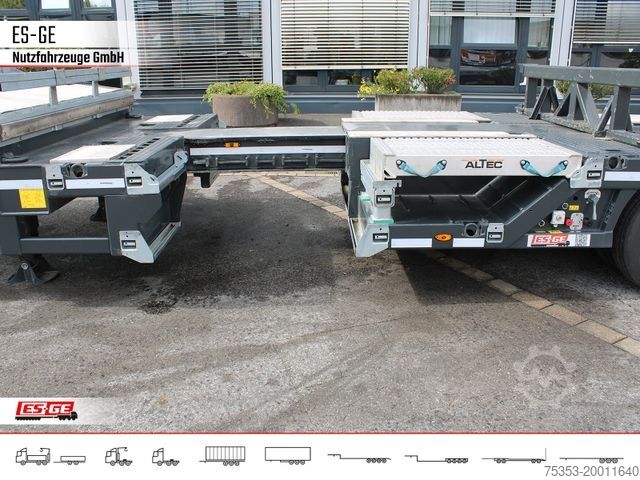

* Wheel wells in front of the axles continuously open up to the cross member of the gooseneck, approx. 1,310 x 700 x 410 mm (L x W x D)
* Wheel wells between the 2nd and 3rd axle approx. 1,310 x 700 x 250 mm (L x W x D)
* Aluminum covers for the wheel wells, which can also be used as bridge elements for the extension OR as widening planks
* In front of and behind the rear wheel well, 1 pair of horizontal lashing rings each (LC 10,000 daN) in the outer frame of the platform
* WADER container pockets in the platform and gooseneck for transporting 2x 20' containers
* 1x over gooseneck with long goods rack
* 1x in the platform
* Extension (galvanized) extendable by approx. 230 mm per side
* Loose widening planks, steel reinforced
* 4 pairs of plug-in WADER container locks
* Long goods rack in the lowbed, level with gooseneck, required for transporting 2x 20' containers
* 1 pair of aluminum loading ramps VFR 120, approx. 2,400 x 620 x 120 mm (L x W x H)

Chassis
* BPW axles and suspension
* 1st and 2nd axle rigid
* 3rd and 4th axle friction-steered with electromagnetically activated reverse lock via reverse gear and manual activation
* Air suspension with lift and lower valve
* Tires: 235/75 R 17.5 3PMSF dual tires
* 1st axle with automatic lift axle function

Braking System
WABCO EBS-E according to EU regulations

Landing Legs
* Me
